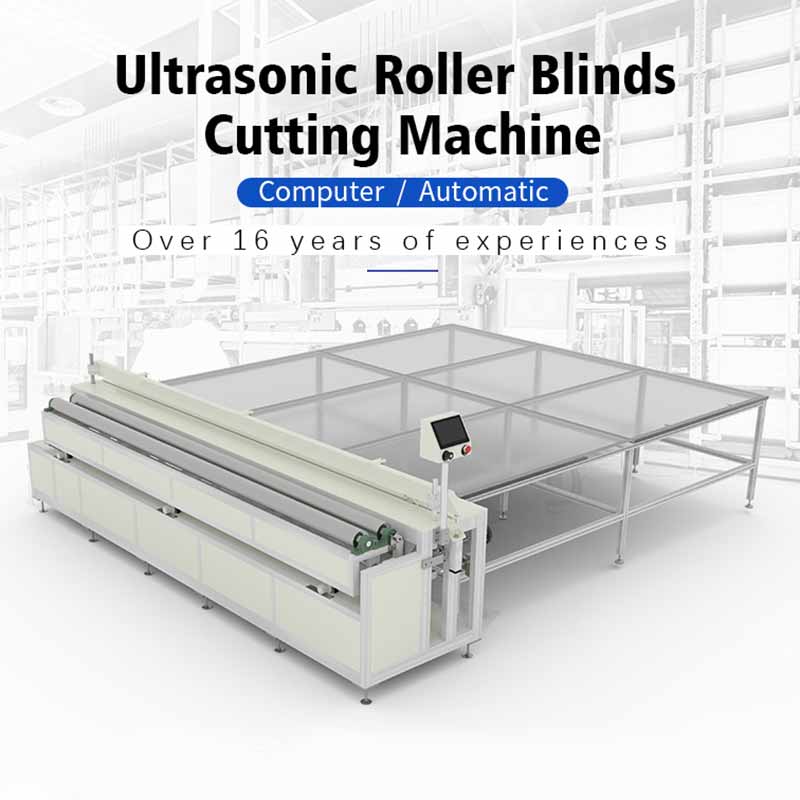

Ultrasonic Roller Blinds Fabric Cutting Machine

Using ultrasonic system from Germany; Good quality rails from Taiwan, it's stable and reliable. It is suitable for cutting roller blinds fabrics(any one layer fabrics, zebra blinds Could be folded cutting), seal edge automatically, no rough selvage, edge

Introduction

Description

  • Using ultrasonic system from Germany; Good quality rails from Taiwan, it's stable and reliable.
  • It is suitable for cutting roller blinds fabrics(any one layer fabrics, zebra blinds Could be folded cutting), seal edge automatically, no rough selvage, edge smooth and firm.
  • Using two pcs of rubber feeding rolls with electric feeding function, set length freely. saving time and effort.

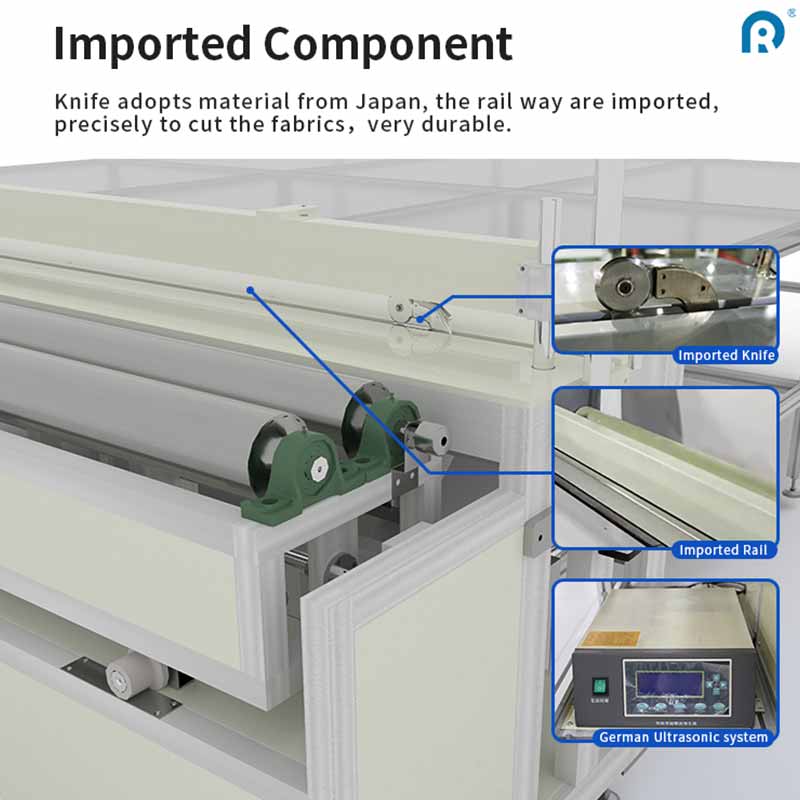

  • All aluminum and stainless steel frame, elegant appearance Knife adopts material from Japan, very durable.

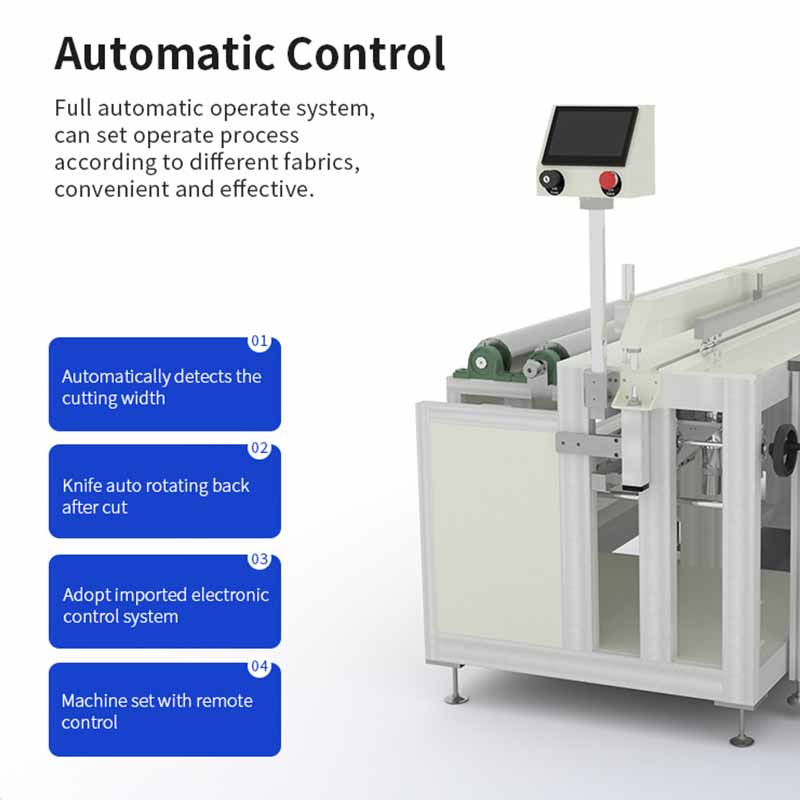

  • Automatically detects the cutting width, knife auto rotatingback after cut. it highly improves productivity. cutting speed is 0.5 to 0.9 meters per second.

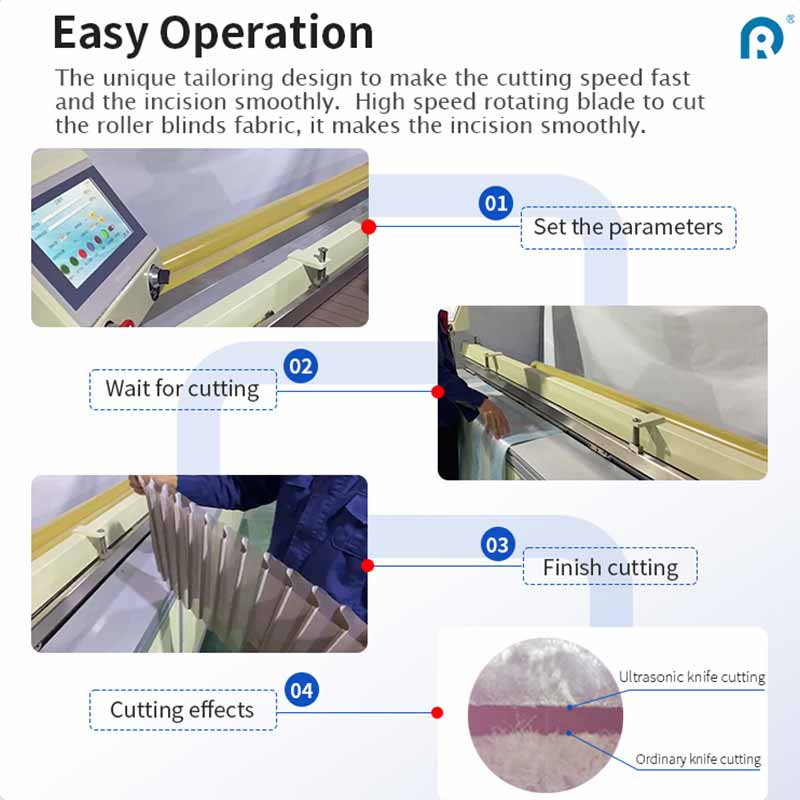

  • Machine set with remote control which has cutting, feeding and returning functions.could operate machine by walking around.

Parameter

Machine model RD-CQJ320
Max cutting width 3.2/4.2m(customizable)
Rated voltage 220/110VAC50/60Hz
Rated power 2.0KW
Air pressure 3-6KG/cm2
Machine Size 3930*940*1100mm
Machine weight 750KG

Ultrasonic Roller Blinds Fabric Cutting Machine-2.jpgUltrasonic Roller Blinds Fabric Cutting Machine-3.jpgUltrasonic Roller Blinds Fabric Cutting Machine-4.jpgUltrasonic Roller Blinds Fabric Cutting Machine-5.jpgUltrasonic Roller Blinds Fabric Cutting Machine-6.jpg
