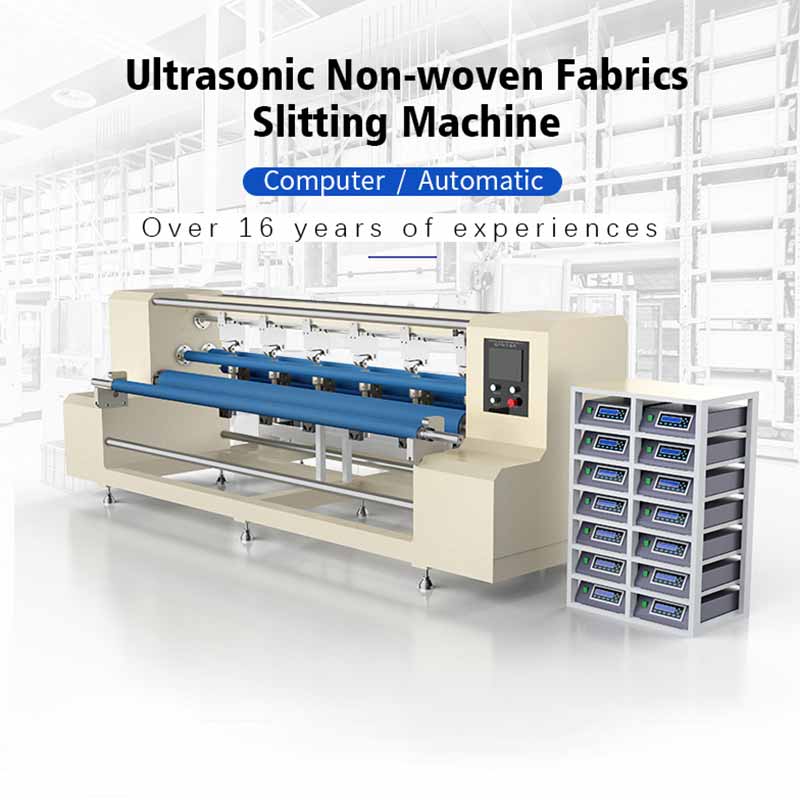

Ultrasonic nonwoven slitting machine

Using ultrasonic system from Germany, SMC cylinder imported from Japan, Good quality rails from Taiwan. stable and reliable. This machine is suitable for slitting for roller blinds, vertical blinds, zebra blinds soft sheer blinds etc.

Introduction

Description

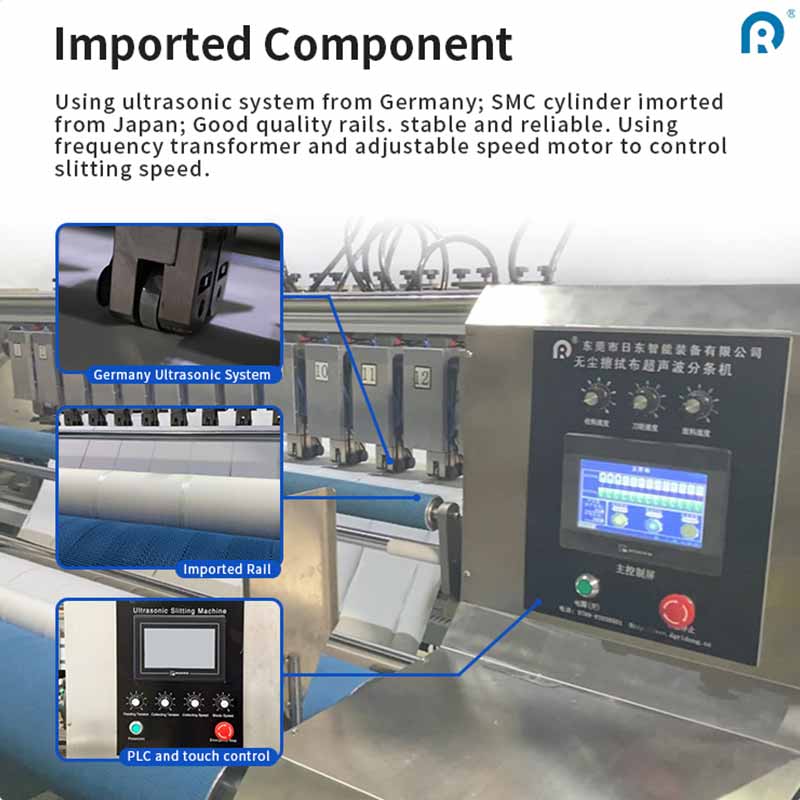

Using ultrasonic system from Germany; SMC cylinder imported from Japan; Good quality rails from Taiwan.
This machine is suitable for slitting for roller blinds, Non-woven fabric, clean cloth,vertical blinds, zebra blinds soft sheer blinds etc.
Fabrics edge automatically sealed after cut, edge smooth and firm, no rough thread comes out.
This machine has high efficiency, cutting speed is 0-40 meters per second(accord fabrics thickness).
Adopt PLC and touch screen as control center, easy operating.

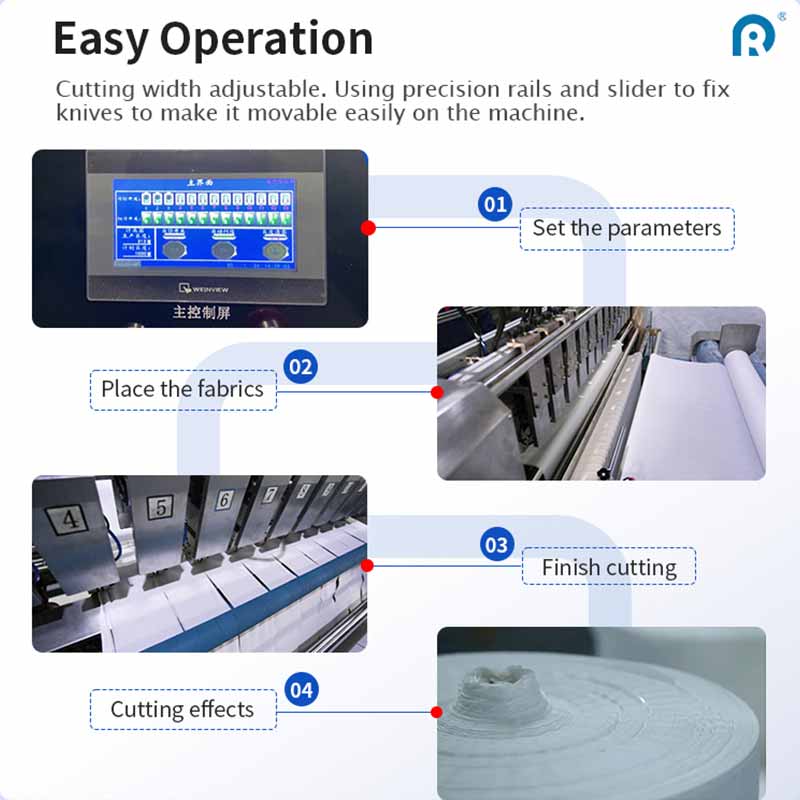

Cutting width adjustable. Using precision rails and slider to fix knives to make it movable easily on the machine.

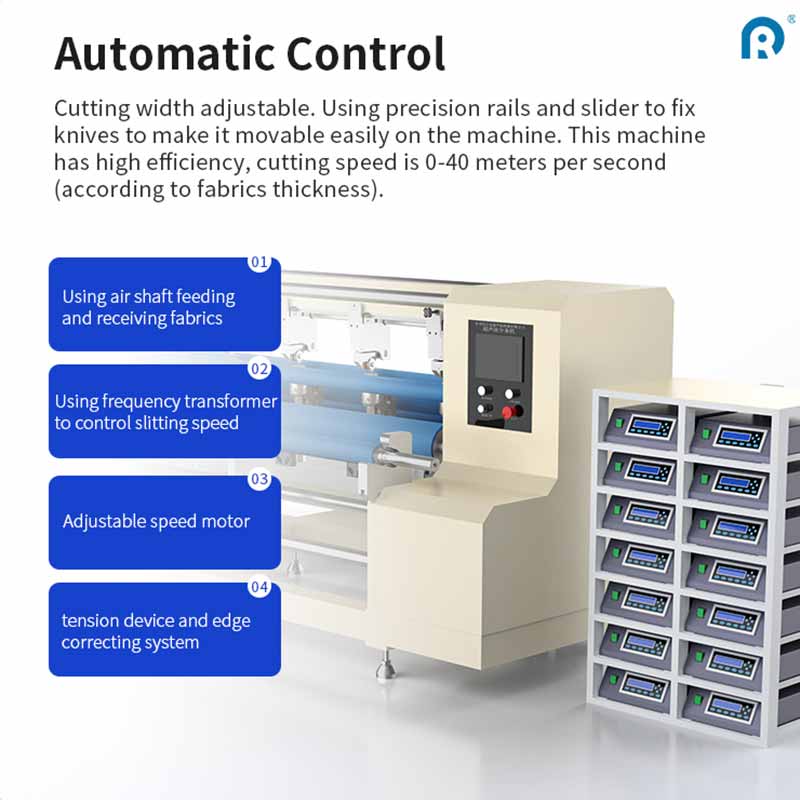

Using frequency transformer and adjustable speed motor to control slitting speed.
Using air shaft feeding and receiving fabrics.

Parameter

Machine model	RD-FTJ300-6
Max slitting width	2.0/2.5/3.0m
Minimum sliting width	89mm
Rated voltage	380/220VAC50/60Hz
Rated power	8.0KW
Machine Size	363017001300mm
Machine weight	1500K
