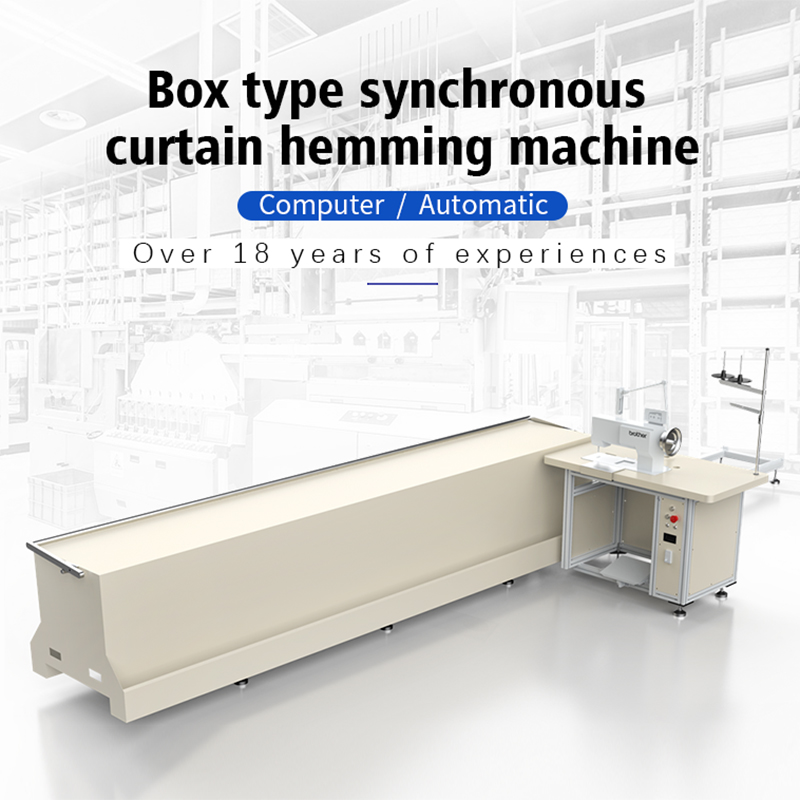

Box Type Synchronous Curtain Hemming Machine

Box Type Synchronous Curtain Hemming Machine

This curtain hemming machine is equipped with a synchronous moving platform. It is best suited for sewing side and bottom edges. It is mainly used for mass production of curtains. The operator can stack the curtains on the table with a length of 3000mm. Then start sewing the curtains layer by layer. When the operator sews the curtains, the side platform will move forward at a speed synchronized with the sewing speed until the sewing reaches the final end of the curtain fabric stitch and automatically cuts the thread, then the platform will move back to its original position, allowing the operator to sew the second layer of the curtain fabric.

Introduction

Description

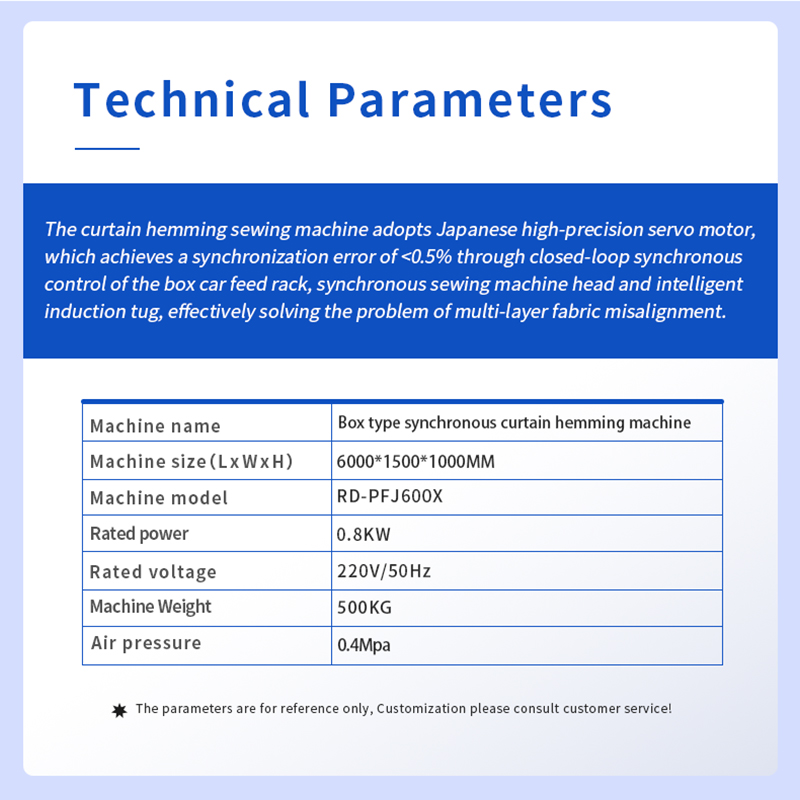

The curtain hemming sewing machine adopts Japanese high-precision servo motor, which achieves a synchronization error of <0.5% through closed-loop synchronous control of the box car feed rack, synchronous sewing machine head and intelligent induction tug, effectively solving the problem of multi-layer fabric misalignment.

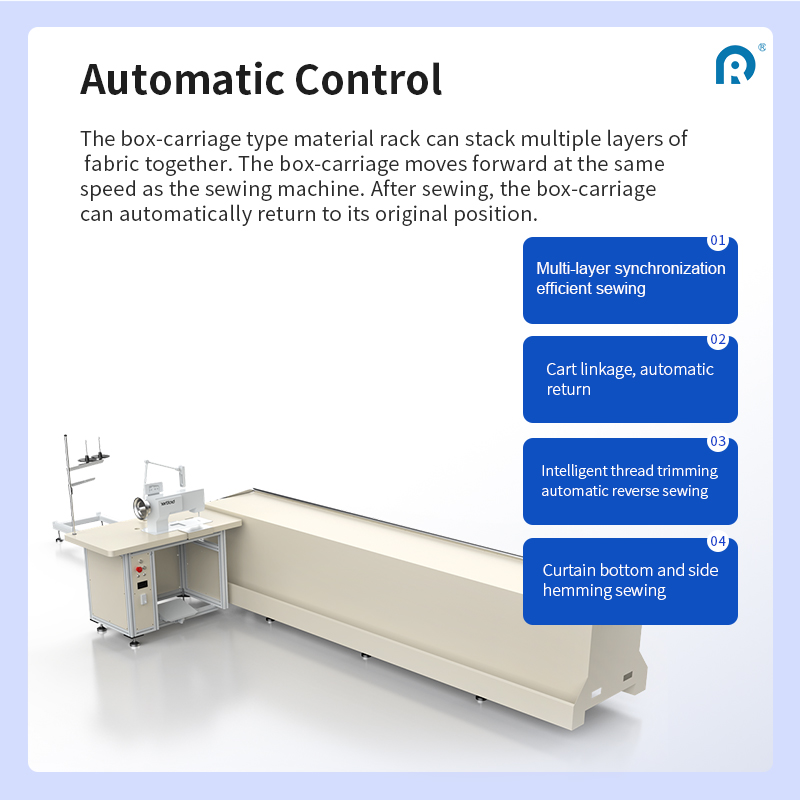

The box-carriage type material rack can stack multiple layers of fabric together. The box-carriage moves forward at the same speed as the sewing machine. After sewing, the box-carriage can automatically return to its original position.

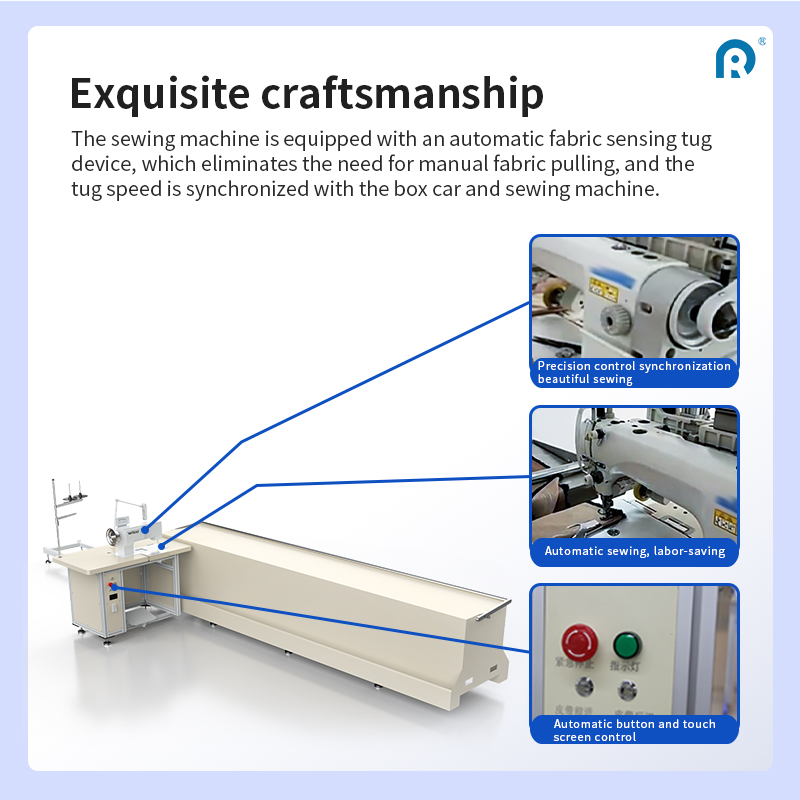

The sewing machine is equipped with an automatic fabric sensing tug device, which eliminates the need for manual fabric pulling, and the tug speed is synchronized with the box car and sewing machine.

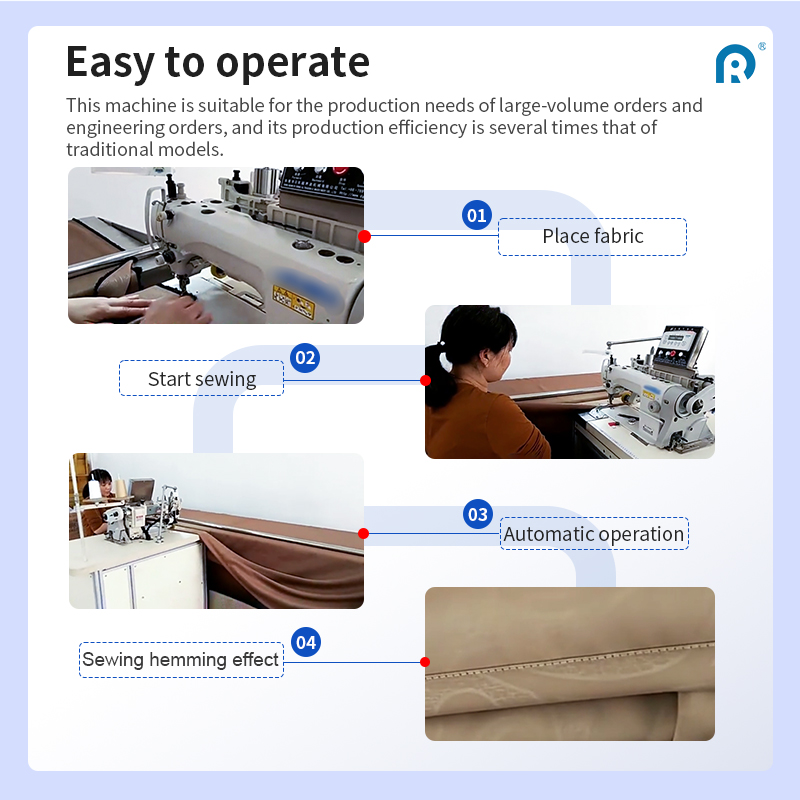

This machine is suitable for the production needs of large-volume orders and engineering orders, and its production efficiency is several times that of traditional models.

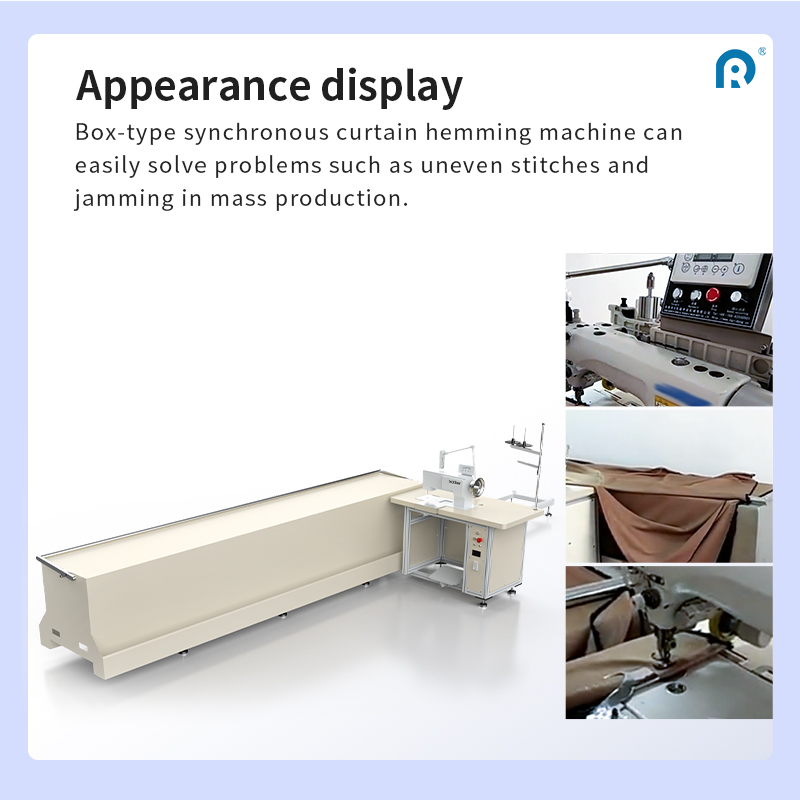

Box-type synchronous curtain hemming machine, easily solves problems such as uneven stitches and jamming in mass production.
This machine is used for hemming the side and bottom edges of curtains. It uses a Japanese imported sewing machine head with synchronized upper and lower teeth. The sewn products are flat and beautiful, and have automatic thread trimming and automatic reversing functions.

Parameter
